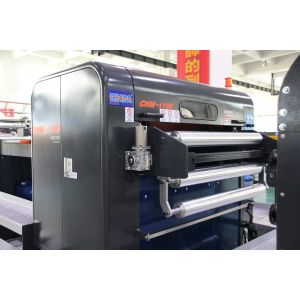

    Buy cheap CHM Paper Roll Sheeter Machine Newspaper Roll To Cutting Machine from wholesalers

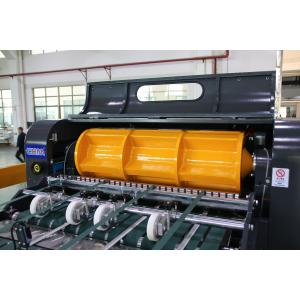

    Buy cheap CHM Paper Roll Sheeter Machine Newspaper Roll To Cutting Machine from wholesalers
    • Buy cheap CHM Paper Roll Sheeter Machine Newspaper Roll To Cutting Machine from wholesalers
    • Buy cheap CHM Paper Roll Sheeter Machine Newspaper Roll To Cutting Machine from wholesalers
    • Buy cheap CHM Paper Roll Sheeter Machine Newspaper Roll To Cutting Machine from wholesalers
    • Buy cheap CHM Paper Roll Sheeter Machine Newspaper Roll To Cutting Machine from wholesalers

    CHM Paper Roll Sheeter Machine Newspaper Roll To Cutting Machine

    Ask Lasest Price
    Brand Name : CHM Machinery
    Model Number : CHM-1100
    Certification : CE
    Price : 50000-120000
    Payment Terms : ,L/C,D/A,D/P,T/T
    Supply Ability : 200 sets
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    CHM Paper Roll Sheeter Machine Newspaper Roll To Cutting Machine

    High Speed Paper Sheeter for Printing Packaging
    CHM-1100 High Speed Paper Sheeter for Printing Packaging
    Product Overview
    CHM-1100 High Speed Paper Sheeter for Printing Packaging
    AC servo-driven Precision High-Speed Sheeter: High speed, precision & efficiency. Adapts to paper, board, art paper, kraft paper, ideal for printing, packaging and paper suppliers
    CHM-1100 High Speed Paper Sheeter front view CHM-1100 High Speed Paper Sheeter side view
    Technical Specifications
    AttributeSpecification
    ModelCHM-1100
    Machine Weight2500kg
    Type of CuttingTop blade rotary, bottom blade fixed
    Weight of Paper60-500 GSM
    Reel DiameterMax 1500mm (59")
    Finished WidthMax 1100mm (43")
    Finished Sheet LengthMin. 450 - Max. 1300 mm
    Number of Rolls Cutting2 rolls
    Cutting Accuracy±0.5mm (L < 1000mm)
    ±0.1% (L ≥ 1000mm)
    Max Speed of Cutting300 cuts/min
    Total Power22 KW
    VoltageAC 380V/220V x 50Hz
    Standard Configuration
    • Max Reel diameter: 1500mm (59")
    • Max Reel width: 1100mm (43")
    • Min Reel width: 350mm (14")
    • Core size: 3", 6", 12" (Cone chuck)
    • HYD. Driving: 3.75kw
    • Clip arm movement driven by HYD
    • Pneumatic brake system
    • Dancing roll with related bracket
    CHM-1100 Standard Configuration Details
    Slitting and Waste Collection System
    • Adjustable slitting knife and exhaust tube for waste edge on both sides
    • Top slitter: Adjustable up/down with manual width adjustment
    • Bottom slitter: Fixed with manual width adjustment
    • Windmill: Driven motor
    • Type-Y collecting pipe for waste edge
    Slitting and Waste Collection System
    High Precision Rotary Sheet Cutter
    • Top Tool Apron: Advanced cutting method reduces noise and load while extending knife life
    • Bottom Tool Apron: Cast and processed for stability
    • Main driving roller: Grainy surface with air pressure control for paper grip
    Advanced Control Systems
    • Auto-Squareness Adjustment with touch screen calibration
    • Static Eliminator System with anti-static bar
    • Auto-tension control via computer based on paper parameters
    • Auto-EPC (Edge Paper Control) with precision sensing nozzle
    • Electric De-curl system for paper curvature reduction
    Advanced Control Systems Electric De-curl System
    Paper Conveyor & Stacking System
    • Horizontal multi-stage conveying for efficient counting and piling
    • First stage: Quick paper separation
    • Second stage: Tile-shaped conveyance with speed control
    • Auto counting and label inserting device
    • Auto Jogger System with HYD piling stand (max stack height 1200mm/47")
    Electrical & Drive Systems
    • User-friendly electric control system with direct parameter input
    • Multiple AC servo and inverter motors for various functions
    • Precision motor control for all operational components
      CHM Paper Roll Sheeter Machine Newspaper Roll To Cutting MachineCHM Paper Roll Sheeter Machine Newspaper Roll To Cutting MachineCHM Paper Roll Sheeter Machine Newspaper Roll To Cutting MachineCHM Paper Roll Sheeter Machine Newspaper Roll To Cutting Machine
